NBN Wireless Connection Box Status Lights
The article will explain the meaning of the status lights
found on the NBN® Connection Box (indoor unit) used for NBN Wireless services.
These lights may help you quickly check on the status of your NBN connection
which may be useful when troubleshooting issues.

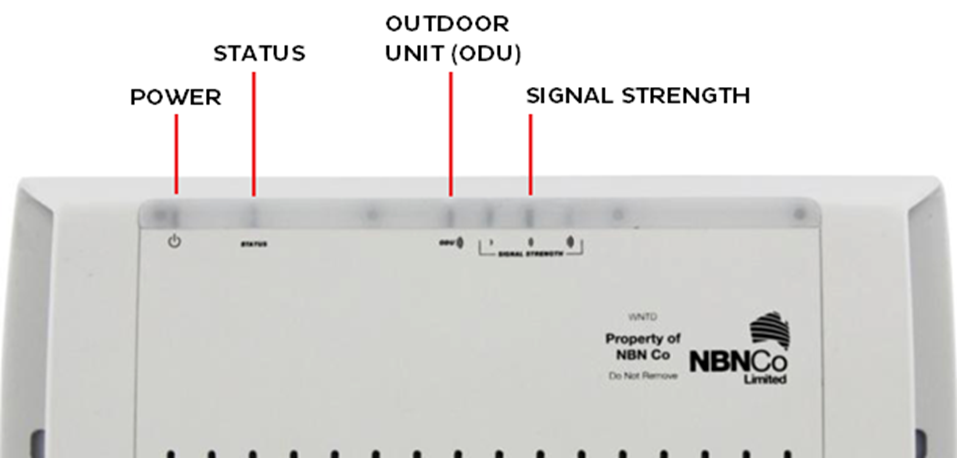

Status lights
|
Light |
State |
Meaning |
|
POWER |
Off |
No power supply. All other lights will be off if the Connection Box has no power. |
|
Red |
Connection Box is operating on backup battery power and power is low (if a battery has been fitted). |
|
|
Green |
Connection Box has power. |
|
|
Flashing Green |
Connection Box is operating on backup battery power (if a battery has been fitted). |
|
|
STATUS |
Off |
Connection Box has no power or is in an unexpected state. |
|
Red |
A system fault is detected. |
|
|
Flashing Amber |
Connection Box is booting up/initialising. |
|
|
Green |
Connection Box is in test mode. |
|
|
Flashing Green |
Connection Box is operating normally. |
|
|
OUTDOOR UNIT (ODU) |
Off |
Connection Box has no power or is in an unexpected state. |
|
Red |
Connection Box is offline. |
|
|
Flashing Red |
An error is detected. |
|
|
Green |
Connection Box is online. |
|
|
Flashing Green |
Network activity. |
|
|
SIGNAL STRENGTH |
Off |
Connection Box has no power or is offline. |
|
Red |
Low signal strength (this is not necessarily a service fault as factors such as local weather can impact signal strength). |
|
|
Amber |
Medium signal strength. |
|
|
Green |
High signal strength. |
